7/8"Swt 48CuIn Filter Drier

401614 is identical to C-417-S

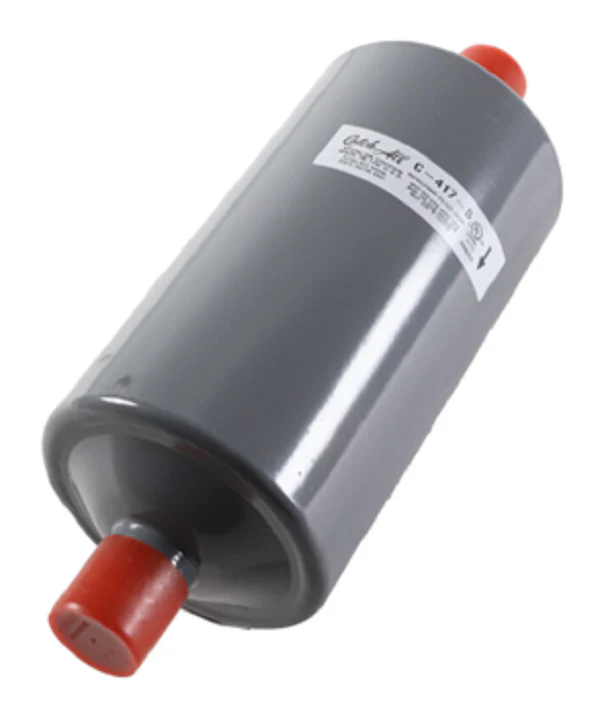

Sporlan 401614 C-417-S Filter Drier – 7/8" Swt, 48CuIn, Liquid Line, HVAC & Refrigeration System Protection

Ensure the reliability and longevity of your HVAC & refrigeration systems with the Sporlan 401614 C-417-S Filter Drier from the Catch-All® Series. Designed for liquid line applications, this 7/8" Swt Filter Drier effectively removes moisture, acids, and solid debris, protecting your system components like compressors and thermostatic expansion valves (TEV) from harmful contaminants.

Key Features:

• Nominal Capacity: 10-12 tons for effective filtration in medium to large systems.

• Connection Size: 7/8" ODF (Outer Diameter Female) Solder for easy integration.

• Core Size: 41 in³ with high-performance desiccant for superior moisture and acid absorption.

• Dimensions: 3.5" diameter x 9.82" length (89mm x 249mm) for compact and efficient design.

• Complete Contaminant Control: Removes harmful moisture, acids, and debris to extend system life.

• High-Performance Desiccant: Offers high water capacity and acid capacity for long-lasting protection.

• Porous Molded Core: Provides excellent filtration of solid debris for added protection of sensitive system components.

• Active Charcoal Models Available: Ideal for system clean-up during servicing or maintenance.

• Moisture Indicating Sightglass: Available on CSG models for easy visual examination of refrigerant moisture levels.

Benefits:

• Protects HVAC&R Systems: Ensures efficient, reliable operation by controlling contaminants that can lead to equipment failure.

• Increases System Efficiency: High-capacity filtration helps maintain optimal performance, reducing downtime and maintenance costs.

• Durable Construction: Designed to withstand harsh HVAC&R environments with long-lasting performance.

• Compliant with Industry Standards: RoHS, REACH, ATEX, and PED compliant, and UL Listed for 650 psig rated pressure for R-410A and Sub-critical CO2 refrigerant use.

Applications:

• Residential & Commercial HVAC Systems

• Food Service Refrigeration

• Commercial & Specialty Refrigeration

• Transportation Air-conditioning and Refrigeration

• Ultra-low Temperature Refrigeration

Specifications:

• Model Number: C-417-S

• Connection Style: ODF Solder

• Connection Size: 7/8" (inches)

• Diameter: 3.5 inches (89mm)

• Length: 9.82 inches (249mm)

• Nominal Capacity: 10-12 tons

• Core Size: 41 in³

• Safety: California Proposition 65 Warning

• Refrigerants: Suitable for use with HCFC, HFC, HFO, and HC refrigerants.

Why Choose the Sporlan 401614 C-417-S Filter Drier? For over 80 years, Sporlan Division of Parker Hannifin has been a leader in HVACR technology. The 401614 C-417-S Filter Drier ensures your HVAC and refrigeration systems perform at their best by offering maximum contaminant control and enhanced system protection. With an easy installation process and superior performance, it’s the ideal solution for keeping your systems running efficiently.

Order the Sporlan 401614 C-417-S Filter Drier today and protect your HVAC system from harmful contaminants for reliable, long-lasting operation!

This item is not eligible for free shipping.
