Condenser Motor, 1/5HP, 208-230Vac, Single Phase, 1075 RPM, 1.6 Amps, 42Y NEMA Frame Size, Open Air Over Enclosure, Self-Align Bearing, Hub or Stud Mount, Permanent Split Capacitor Motor

8952 is the cross of HBDQ5777 (Replacement is 1/5 HP Increase in HP should not be an issue as it is close enough & will no affect motor performance)

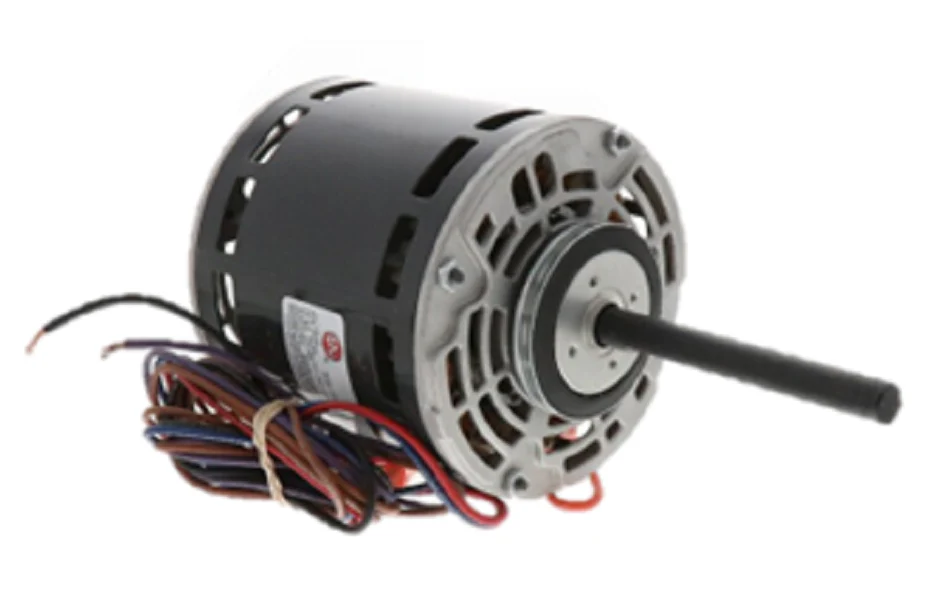

Nidec-US Motors 8952 Condenser Motor – 1/5 HP, 208-230V, 1075 RPM, PSC Motor

Upgrade your HVAC system with the Nidec-US Motors 8952 Condenser Motor, a high-performance direct drive fan motor designed for central air conditioning and refrigeration systems. Built for reliability and efficiency, this motor delivers consistent airflow while minimizing energy consumption.

Key Features:

• Brand: Nidec-US Motors

• Model: 8952 / K048TTW4147012B

• Motor Type: Permanent Split Capacitor (PSC)

• Horsepower: 1/5 HP

• Voltage: 208-230V, 60 Hz, Single Phase

• Speed: 1075 RPM

• Amperage: 1.6 A

• Frame Size: 42Y NEMA, 5.0" Diameter Rolled Steel

• Shaft: Flat, 1/2" Diameter x 4"

• Mounting: Hub or Stud Mount

• Enclosure: Open Air Over (OAO)

• Bearing: Self-Align / Sleeve Bearings

• Insulation Class: B

• Rotation: Counterclockwise (CCW) Lead End

• Service Factor: 1

• Overload Protection: Automatic

• Warranty: 1-Year Manufacturer Warranty

• Additional Info: Wiring diagram on motor nameplate

Why Choose the Nidec-US Motors 8952?

• Reliable direct drive fan motor for central HVAC systems

• Durable construction with rolled steel frame and self-aligning bearings

• Easy installation with hub or stud mount options

• Efficient PSC design for energy savings

• Designed for long-lasting performance with automatic overload protection

Keep your HVAC system running smoothly with the Nidec-US Motors 8952 Condenser Motor, a trusted solution for residential and commercial air conditioning applications.
