IO Hvac Controls ZP6-KIT Control Kit

Product image 1

IO Hvac Controls ZP6-KIT Control Kit

IO Hvac Controls ZP6-KIT Control Kit. 6-ZONE UNIVERSAL ZONE CONTROL PANEL KIT WITH DUCT TEMP SENSOR AND 75VA TRANSFORMER.

The ZP6 is a 6 zone, two-position forced air zone control panel that can be expanded to as many as 12 zones. The panel can be used with single-stage, multi-stage, heat pump or dual fuel equipment with up to 3 stages of heating and 2 stages of cooling. Slide switch configuration makes setup quick and easy. A wide range of control options provides ultimate application flexibility.

Features

  • 6 zones expandable to 12
  • Auto changeover
  • Priority cooling or majority wins
  • Twenty minute time share option
  • LED status indication
  • On-board adjustable high and low limits and balance points
  • Staging by zone thermostat or adjustable staging timer
  • Purge cycle option
  • Competitively priced

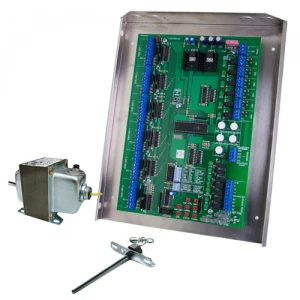

Kit includes:  Panel, duct temperature sensor and 75VA transformer.



$171.17

Original: $570.57

-70%
IO Hvac Controls ZP6-KIT Control Kit—

$570.57

$171.17

Product Information

Shipping & Returns

Description

IO Hvac Controls ZP6-KIT Control Kit. 6-ZONE UNIVERSAL ZONE CONTROL PANEL KIT WITH DUCT TEMP SENSOR AND 75VA TRANSFORMER.

The ZP6 is a 6 zone, two-position forced air zone control panel that can be expanded to as many as 12 zones. The panel can be used with single-stage, multi-stage, heat pump or dual fuel equipment with up to 3 stages of heating and 2 stages of cooling. Slide switch configuration makes setup quick and easy. A wide range of control options provides ultimate application flexibility.

Features

  • 6 zones expandable to 12
  • Auto changeover
  • Priority cooling or majority wins
  • Twenty minute time share option
  • LED status indication
  • On-board adjustable high and low limits and balance points
  • Staging by zone thermostat or adjustable staging timer
  • Purge cycle option
  • Competitively priced

Kit includes:  Panel, duct temperature sensor and 75VA transformer.
