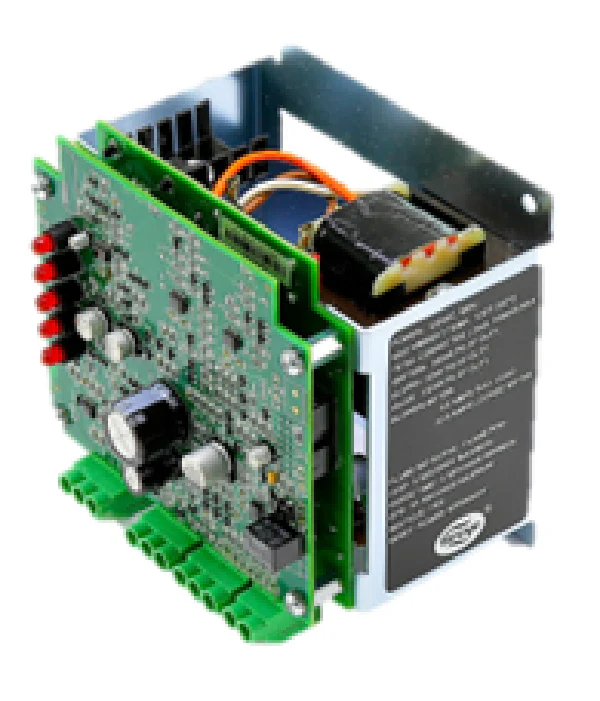

Fireye M4RT1 Flame Safeguard Control – 120V, 5 Sec P.T.F.I., Compact Burner Management System

The Fireye M4RT1 Flame Safeguard Control is a compact burner management system designed for commercial-sized heating and process burners that use gaseous fuels. This advanced control system ensures automatic ignition and continuous flame monitoring, providing safety and reliability for your industrial burner systems.

Key Features:

• 🔥 Automatic Ignition & Flame Monitoring: Utilizes a Flame Rod detector with an integrated amplifier and programmer for continuous flame supervision.
• ⏱️ Factory Set Control Functions: Functions such as recycle/non-recycle, purge timing, and pilot trial for ignition (P.T.F.I.) time are pre-set via onboard jumpers for easy configuration.
• ⚡ Fast Flame Failure Response: Flame Failure Response Time (F.F.R.T.) is fixed at a rapid three seconds to ensure quick safety shutdowns.
• 🚨 Safety Lockout & Alarm: In case of ignition failure or a safety shutdown, the control locks out and activates an alarm circuit. A manual reset option is available upon request.
• 🔄 Remote Reset Option: A remote reset feature (via pushbutton) is available as a special order, providing flexibility in system operation.
• 🛠️ Test Jacks for Monitoring: Test jacks allow for easy measurement of the flame signal during operation, ensuring the system is performing as expected.
• 🧯 Safety Check Circuit: Operates on every start to prevent fuel valve activation if flame is detected prior to startup or during the purge cycle, ensuring optimal safety.
• 🔌 No Wiring Base Required: The M4RT1 comes with terminals included on the relay board, eliminating the need for a separate wiring base.

Specifications:

• Model: Fireye M4RT1
• Voltage: 120V
• P.T.F.I. (Pilot Trial for Ignition): 5 Sec
• Flame Failure Response Time (F.F.R.T.): 3 Seconds
• Flame Detection: Flame Rod Detector
• Control Type: Flame Safeguard Control
• Reset Options: Manual & Remote (special order)
• Alarm Circuit: Activates on ignition failure or safety shutdown

Warning:
The selection of this control for any specific application should be made by a competent, licensed professional to ensure safety. Inappropriate use may result in hazardous conditions.

Applications:
The Fireye M4RT1 Flame Safeguard Control is ideal for a wide range of commercial heating systems and process burners. It ensures safe, reliable operation by continuously monitoring flame status, preventing ignition failures, and providing a secure shutdown in case of danger.

Ensure the safety and efficiency of your burner systems with the Fireye M4RT1 Flame Safeguard Control. Order yours today for reliable, professional-grade flame protection.
