DISPLAY MODULE

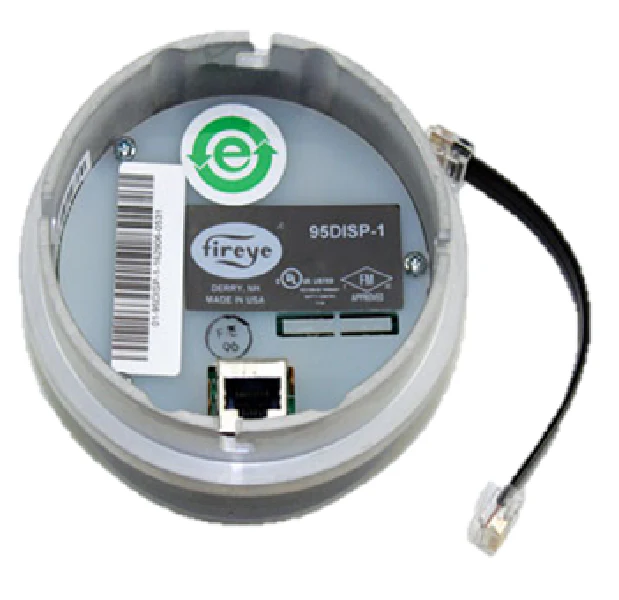

Fireye 95DISP-1 Display Module – OEM Replacement for Industrial Burner Management Systems

The Fireye 95DISP-1 Display Module is a high-performance display unit designed for monitoring and control in Fireye burner management systems. Engineered for durability and precision, this module ensures safe, reliable operation in demanding industrial environments.

Key Features & Benefits:

• Durable Housing Options:

  • Standard Models: Cast aluminum with gray polyester powder coat finish

  • CEX-2 Model: Cast aluminum, 13.2 lbs (5.98 kg)

  • CEXSS Model: 316 stainless steel with zinc primer, epoxy midcoat, and polyurethane topcoat (21.3 lbs / 9.66 kg)

• Environmental Ratings: NEMA Type 4X / IP66; Class I Division 2 (Groups A, B, C, D); Class II Division 2 (Groups F & G)

• Temperature Tolerance: Operates from -40°F to +150°F (-40°C to +65°C) with internal scanner temperature up to 176°F (80°C)

• Cooling & Purge Air: Requires clean, dry air at 4 SCFM (113 l/min); can require up to 15 SCFM (425 l/min) in dusty or high-temperature conditions

• Electrical Performance:

  • Input Power: 24 VDC, +10%/-15%, 0.35 A (8.5 VA)

  • Relay Outputs: Two flame relays (SPDT), one fault relay (SPST)

  • Quick-disconnect 8-pin and 12-pin screw type connections

• Advanced Flame Detection: Combines infrared and ultraviolet sensors in a single device for accurate flame monitoring

• Integrated Outputs: Includes two 4-20 mA outputs standard

• Wireless Commissioning: Compatible with intrinsically safe wireless handheld commissioning tool

Applications:
The Fireye 95DISP-1 Display Module is ideal for industrial and commercial burner management systems, ensuring reliable flame safeguard, combustion control, and system monitoring in power plants, refineries, manufacturing facilities, and other critical environments.

Why Choose Fireye 95DISP-1?
With rugged housing, wide temperature tolerance, and advanced flame detection capabilities, the 95DISP-1 provides dependable performance while meeting stringent safety standards. It is a trusted OEM solution for upgrading or replacing display modules in Fireye systems.
