460v3ph 385000btu R410A COMP

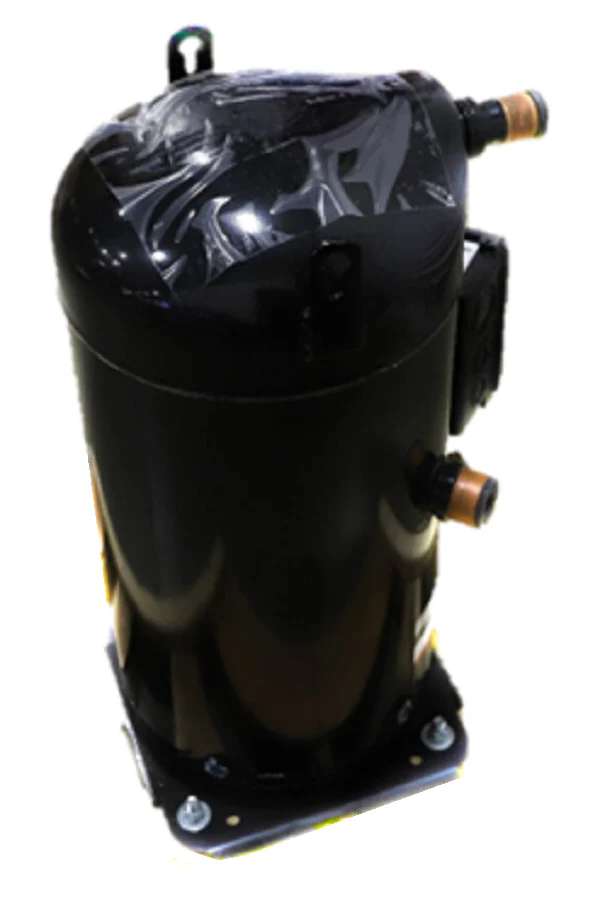

Copeland ZP385KCE-TED-951 Scroll Compressor – 460V 3PH, 385,000 BTU, R-410A

The Copeland ZP385KCE-TED-951 Scroll Compressor delivers industry-leading efficiency, reliability, and performance for commercial HVAC systems. Engineered with Copeland’s patented scroll technology, this hermetic compressor ensures smooth, quiet, and energy-efficient operation while supporting the industry’s transition to environmentally friendly R-410A refrigerant.

Ideal for both air conditioning and refrigeration applications, the ZP385KCE-TED-951 offers robust construction, superior cooling capacity, and long-lasting dependability, making it a trusted choice for contractors and OEMs worldwide.

---

Key Features and Benefits

• High Efficiency: Scroll design optimizes energy use across all operating ranges, helping reduce electricity consumption and operating costs.

• Reliable Operation: Features 70% fewer moving parts, eliminating complex internal valves for enhanced durability and quieter performance.

• Environmentally Friendly: Designed for R-410A refrigerant, meeting EPA standards and supporting eco-conscious HVAC system design.

• Advanced Liquid Handling: Axial and radial compliance mechanisms protect the compressor from liquid refrigerant damage.

• Proven Innovation: Backed by decades of Copeland engineering expertise, with over 100 million scroll compressors installed globally.

• Low Noise Levels: Operates at 89–94 dBA, ensuring reduced vibration and quieter operation compared to traditional compressors.

• Compact, Easy to Service: Lightweight and space-efficient design simplifies installation and maintenance.

---

Technical Specifications

• Brand: Copeland

• Model: ZP385KCE-TED-951

• Compressor Type: Scroll (Hermetic)

• Refrigerant: R-410A

• BTU Output: 385,000

• Voltage: 380/420/460V, 3-Phase, 50/60 Hz

• Rated Load Amps (RLA): 54.5 / 60

• Locked Rotor Amps (LRA): 310

• Mass Flow: 4790–5650 lbs/hr

• Displacement: 21.32 in³/rev

• Sound Level: 89–94 dBA

• Oil Type: Polyolester (POE), 213 oz initial charge

• Mounting Dimensions: 10.5" x 10.5" x 28.9"

• Dimensions (L x W x H): 17.6" x 16.8" x 28.5"

• Weight: 390 lbs

• Origin: USA

• Approvals: UL Recognized

• Prop 65 Compliance: Yes

---

Applications

• Commercial air conditioning systems

• Industrial cooling and refrigeration

• Multi-ton rooftop and split systems

• R-410A replacement and upgrade projects

---

Why Choose Copeland Scroll Technology

Copeland pioneered scroll compressor technology, transforming HVAC efficiency worldwide. With their unmatched reliability, energy savings, and environmentally responsible design, Copeland Scroll Compressors like the ZP385KCE-TED-951 continue to set the standard for performance and innovation in modern HVAC systems.

---

Upgrade your system with the Copeland ZP385KCE-TED-951 — engineered for maximum efficiency, superior reliability, and long-term performance.

Country of Origin: USA
Unit of Measure: Each (EA)

Warranty policy for this compressor is 1 year from purchase and is only issued if an exact replacement compressor is ordered from our same vendor.
