1 11/16" Bore Diameter Medium Duty Cast Iron Pillow Block Ball Bearing with Setscrew Locking and Contact and Flinger Seal for Air Handler Application

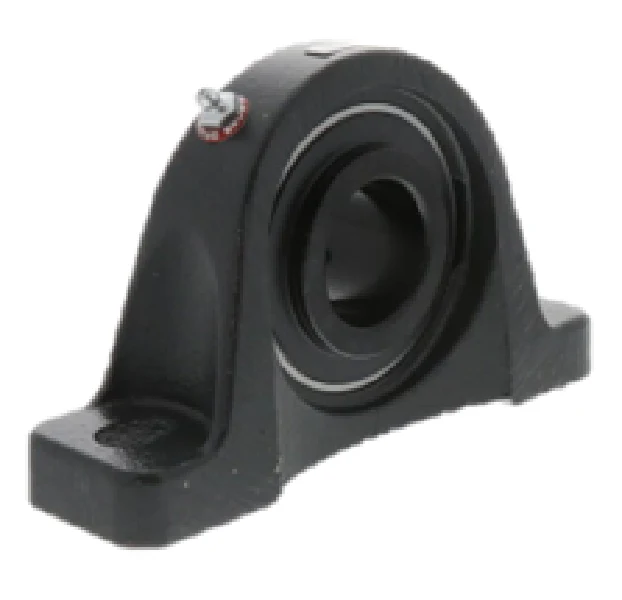

Browning VPS-327 AH Ball Bearing – Medium Duty Cast Iron Pillow Block

The Browning VPS-327 AH is a medium-duty cast iron pillow block ball bearing designed for air handler applications. With a 1-11/16" bore diameter, set screw locking, and a single-lip contact seal with flinger, this bearing ensures reliable performance in demanding industrial HVAC systems.

Built for durability, the VPS-327 AH features a 52100 bearing steel insert and a gray-painted cast iron housing, providing long service life and resistance to corrosion. The non-expansion, fixed-type bearing supports precise alignment and stable operation under radial loads. With a maximum operating temperature of 200°F and radial dynamic and static load capacities of 7,889 lbf and 5,216 lbf, respectively, this bearing is ideal for heavy-duty airflow systems and air handling units.

Equipped with a lubrication fitting for regular maintenance, the VPS-327 AH is compatible with the VS-327 replacement bearing and operates at speeds up to 3,000 RPM, making it a reliable choice for continuous duty applications.

---

Key Features

• Medium-duty pillow block ball bearing for air handler applications

• Bore diameter: 1-11/16" with set screw locking

• Seal: Single-lip contact with flinger for contamination protection

• Housing: Cast iron, gray-painted finish

• Bearing Material: 52100 steel insert

• Mounting: 2-bolt base, non-expansion (fixed) design

• Max Operating Temperature: 200°F

• Radial Dynamic Load Capacity: 7,889 lbf

• Radial Static Load Capacity: 5,216 lbf

• Max RPM: 3,000

• Lubrication: Fitting provided for maintenance

• Compatible replacement: VS-327

---

Product Specifications

• Brand: Browning

• Model: VPS-327 AH

• Series: VPS-AH

• Mounting Type: 2-Bolt Base

• Bore Type: Round

• Bore Diameter: 1-11/16 in

• Bolt Center to Center Length: 5.6250 – 6.6250 in

• Base to Bore Centerline: 2.3125 in

• Overall Height: 4.6250 in

• Overall Length: 7.9375 in

• Base Width: 2.2500 in

• Duty Type: Medium Duty

• Locking Device: Set Screw

• Seal Type: Single Lip Contact with Flinger

• Finish Coating: Gray Painted

• Max Operating Temperature: 200°F

• Radial Dynamic Load Capacity: 7,889 lbf

• Radial Static Load Capacity: 5,216 lbf

• Lubrication Type: Lubrication Fitting

• Application: Browning – Air Handling

• UPC: 662460066806

---

Applications

The Browning VPS-327 AH Ball Bearing is ideal for:

• Industrial air handler units

• HVAC systems requiring medium-duty bearings

• Continuous duty blower and fan applications

• Systems needing durable pillow block ball bearing support
