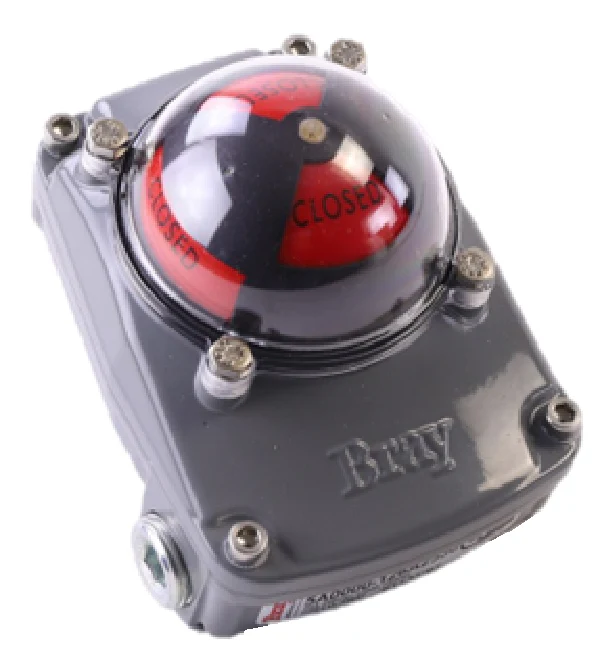

Bray Commercial 5A0000-126A2536 Valve Status Monitor / Limit Switch – Compact, Weatherproof Position Indicator

The Bray Commercial 5A0000-126A2536 is a 5A Series Valve Status Monitor (VSM) designed to provide reliable visual and electrical position indication for quarter-turn devices compliant with VDI/VDE 3845 standards. This compact and lightweight monitor is ideal for tight installations while delivering durable, high-performance operation in industrial and commercial valve applications.

Featuring a rugged die-cast aluminum enclosure with polyester powder coating, the 5A0000-126A2536 offers superior resistance to corrosion, wear, impact, and UV exposure, making it suitable for harsh environments. Certified to IP66/67/68, NEMA Type 4X, cULus, ATEX, IECEx, and CE standards, this valve monitor ensures long-term reliability and safety.

Key Features

• Brand: Bray Commercial

• Model Number: 5A0000-126A2536

• Type: Valve Status Monitor / Limit Switch

• Series: 5A

• Visual Position Indicator: High-visibility dome for open/closed indication; easily invertible without exposing internal wiring

• Switch Options: Multiple configurations for electrical connectivity

• Enclosure: UL certified, NEMA Type 4/4X, IP66/67, weatherproof die-cast aluminum with O-ring seal

• Mounting: Requires separate mounting kit (5B0000-22600534 or 5B0000-22601534) depending on actuator type and size

• Terminals: Clearly marked, user-friendly angled terminal blocks

• Conduit Entries: Available in imperial or metric threads

• Grounding: Green color-coded, easily accessible grounding bolt

Benefits

• Provides accurate visual and electrical position feedback for quarter-turn valves

• Compact, lightweight design fits in the tightest installation spaces

• Robust weatherproof construction for outdoor and industrial environments

• Easy to set up with splined sensor cams for precise switch activation

• Protective features include stub shaft secondary seal, O-ring enclosure seal, captive cover bolts, and corrosion-resistant washers

• High visibility position indicator allows quick status checks without opening the unit

The Bray 5A0000-126A2536 Valve Status Monitor is ideal for industrial, commercial, and process control applications, delivering reliable valve feedback, superior durability, and easy installation for professionals and technicians.
