ACTUATOR 24VAC/DC 2-10VDC TERM

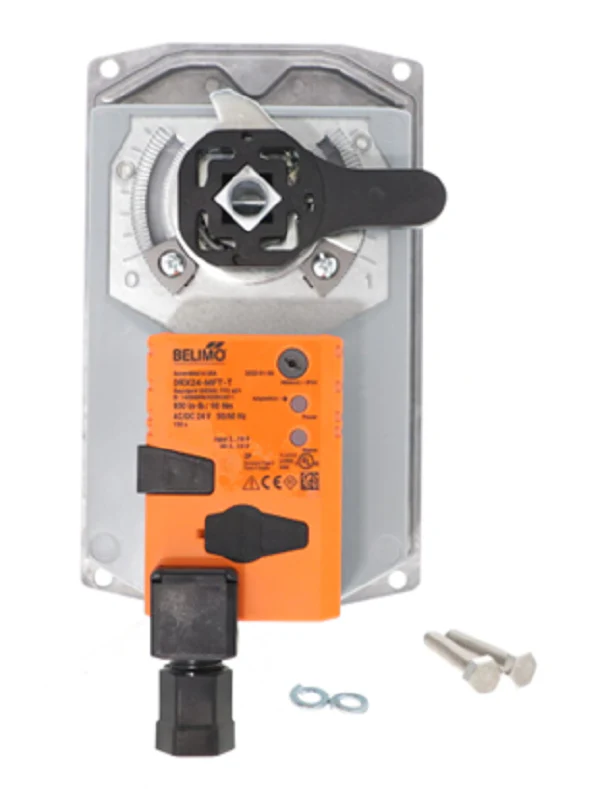

Belimo DRX24-MFT-T Configurable Valve Actuator — 24VAC/DC, 2–10VDC, Non Fail-Safe

The Belimo DRX24-MFT-T is a high-performance configurable valve actuator engineered for precision and efficiency in HVAC and building automation systems. Designed for versatility, this non fail-safe actuator operates on AC/DC 24 V and offers programmable control with a 2–10 VDC signal via terminal connections.

Built to Belimo’s rigorous quality standards, the DRX24-MFT-T ensures smooth and reliable valve operation with adjustable motor direction and an external push-button manual override for added flexibility during setup or maintenance. Its NEMA 2 (UL Type 2) enclosure offers dependable protection in a variety of installation environments.

Key Features:

• Model: DRX24-MFT-T

• Voltage: AC/DC 24 V

• Control: MFT/Programmable, 2–10 VDC

• Power Consumption (Running): 12 W

• Power Consumption (Holding): 3 W

• Power for Wire Sizing: 21 VA

• Direction of Motion: Selectable via switch (0/1)

• Manual Override: External push-button

• Running Time (Motor): 150 s / 90° (adjustable 75–150 s)

• Enclosure: NEMA 2 / UL Type 2

• Application: Configurable valve actuator for HVAC systems

Upgrade your HVAC control system with the Belimo DRX24-MFT-T actuator for precise modulation, easy configuration, and long-lasting performance. Ideal for commercial, industrial, and institutional settings where reliable valve control is essential.
