ADC Chassis

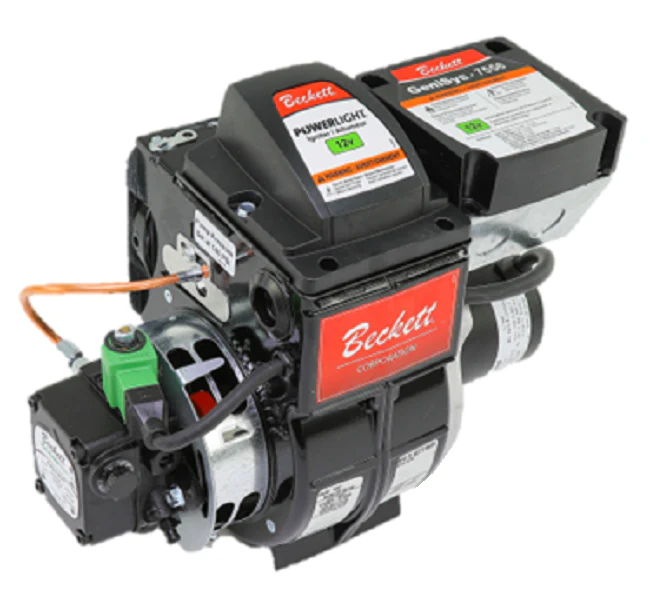

The Beckett BPW201 ADC Chassis Igniter is an advanced oil burner designed specifically for off-grid heating applications where an AC power source is unavailable. Powered by a standard DC power supply, the Beckett ADC Oil Burner utilizes the Beckett GeniSys Control system, integrating a cad cell flame sensor to efficiently control the motor, igniter, and solenoid valve.

Key Features:

• Battery-Powered Flexibility: Ideal for off-grid installations, the Beckett ADC burner operates on 12 V or 24 V configurations, providing efficient ignition even without AC power.
• Interrupted Duty Ignition: Designed to extend battery life by only drawing full load current during the ignition period, optimizing battery usage for long-term reliability. Intermittent duty ignition is also available for varied operational needs.
• Smooth and Clean Starts: Equipped with a Beckett CleanCut Pump, the burner features an integrated solenoid valve for smoother light-offs and cleaner shutdowns, reducing wear and ensuring more efficient operation.
• High Static Pressure: The Air Guide system provides high static pressure for smoother starts and minimal pulsation, ensuring consistent performance even in challenging conditions.
• Flexible Fuel Options: The burner is compatible with No. 1 or No. 2 diesel fuel, kerosene, and No. 1 or No. 2 heating oil (ASTM D396), offering versatility for various fuel types.

Performance Specifications:

• Fuel Capacity: Suitable for 0.75 to 2.50 GPH with input capacities ranging from 105,000 to 350,000 BTU/hr, ideal for residential and commercial heating needs.
• Fuel Unit: Available in single stage or two stage options to meet specific heating demands.
• Ignition Power: Provides 20 KVpk/30 mA interrupted duty ignition with the option for continuous duty ignition for extended operational periods.
• Motor Specifications: Operates on a 13.5 VDC motor, ⅙hp at 3450 rpm with a NEMA M-flange, drawing a maximum current of 10 amps (igniter off) and 15 amps (igniter on).
• Power Supply: The burner is powered by 13.5 VDC, ensuring energy-efficient operation with low power consumption.
• Temperature Range: Suitable for operation in ambient temperatures ranging from 32°F to 115°F (0°C to 46°C), providing reliable heating in various climates.

Dimensions:

• Height: 11½"
• Width: 14⅜"
• Depth: 6⁹∕₁₆"
• Air Tube Diameter: 4"

Why Choose the Beckett BPW201 ADC Chassis Igniter?

• Off-Grid Capability: Ideal for remote or off-grid locations requiring a reliable, battery-powered heating solution.
• Enhanced Battery Life: Interrupted duty ignition draws current only when needed, extending battery life.
• Smoother Starts and Shutdowns: The integrated solenoid valve ensures cleaner, more efficient operation.
• Wide Fuel Compatibility: Compatible with a variety of fuels including diesel, kerosene, and heating oil.
• Versatile and Reliable: The Beckett BPW201 is designed to meet the diverse heating needs of both residential and commercial applications with flexible fuel options, easy installation, and long-lasting performance.

For off-grid heating with exceptional performance, the Beckett BPW201 ADC Chassis Igniter is the ultimate solution, providing efficient and reliable operation without the need for AC power.
