Valve, Solenoid, 3 Way Normally Closed, 1/2", NPT, 120Vac, 3.2 Cv 10-250 PSI Air and Water Pilot Operated Brass Body with NBR Seal and Brass Disc and Nema 4X Enclosure

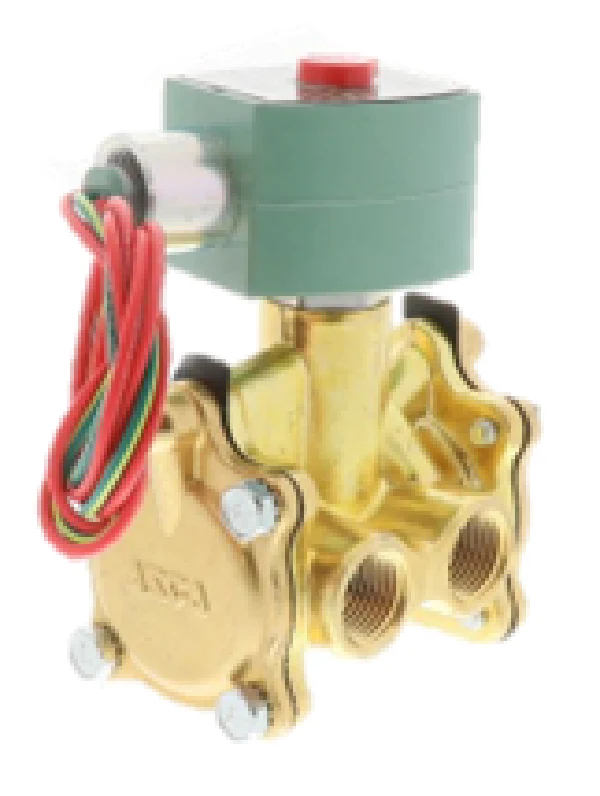

ASCO 8316G24 Solenoid Valve – 3-Way Normally Closed, 1/2" NPT, 120 VAC

The ASCO 8316G24 is a high-quality, pilot-operated 3-way normally closed solenoid valve designed for reliable control of air and water in industrial and commercial applications. Part of ASCO’s trusted 8316 Series, this valve is ideal for operating single-acting cylinders and other air-operated equipment where dependable performance is critical.

Featuring a durable brass body, Buna-N (NBR) seals, and a brass disc, the ASCO 8316G24 delivers long service life and consistent operation. It operates on 120 VAC power, supports pressures from 10 to 250 PSI, and offers a 3.2 Cv flow rating for efficient media control. The NEMA 4X enclosure provides excellent protection against dust, moisture, and corrosion, making it suitable for demanding environments.

Key Features & Specifications

• Manufacturer: ASCO

• Part Number: 8316G24

• Valve Type: 3-Way Solenoid Valve

• Operation: Pilot Operated, Normally Closed (NC)

• Port Size: 1/2" NPT

• Voltage: 120 VAC

• Flow Coefficient (Cv): 3.2

• Pressure Range: 10–250 PSI (requires 10 PSI minimum differential)

• Media: Air and Water

• Body Material: Brass

• Seal Material: Buna-N (NBR)

• Disc Material: Brass

• Enclosure Rating: NEMA 4X

Applications

• Single-acting pneumatic cylinders

• Air-operated industrial equipment

• General air and water control systems

• Automation, manufacturing, and process control applications

The ASCO 8316G24 Solenoid Valve is a dependable OEM-quality solution for precise and efficient fluid and air control. Its robust construction and proven ASCO performance make it a trusted choice for a wide range of industrial applications.
